Adjustable Motor Slide Base For Standard V Belts

Adjustable Motor Slide Base For Standard V Belts

Adjustable Motor Slide bases are manufactured from graded cast iron, suitably designed for various applications to adjust the centre distances between motor and machine gear box shaft. It consists of robust dovetail guide ways which guarantees quiet running of variable speed pulleys . It is equipped with a handwheel for easy adjustment and suitable for frame size from 71 to 180

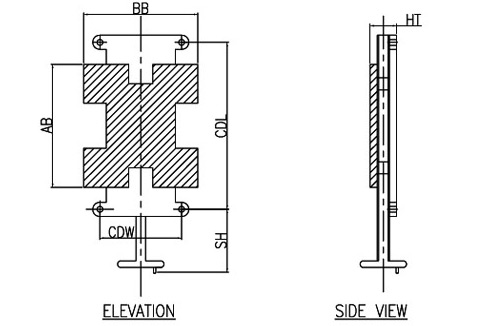

Selection Table

Dimensions Model 718090 Model 100112 Model 132160180
BB 190 235 380
CDL 187 240 450
SH 90 90 100
CDW 136 160 320
AB 205 245 455
HT 50 56 75
Suitable for Motor Frame Size 71,80,90 100,112 132,160,180

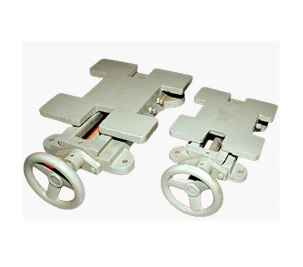

Adjustable Motor Slide Base

Caution - Change the speed in Running condition only

Specifications are subject to change without notice
