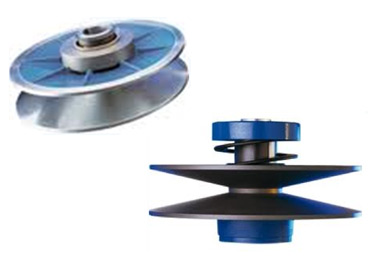

Product Interchange To Berges Type Pulley RF b & Fsb

Product Interchange To Lenze Variable Speed Pulley

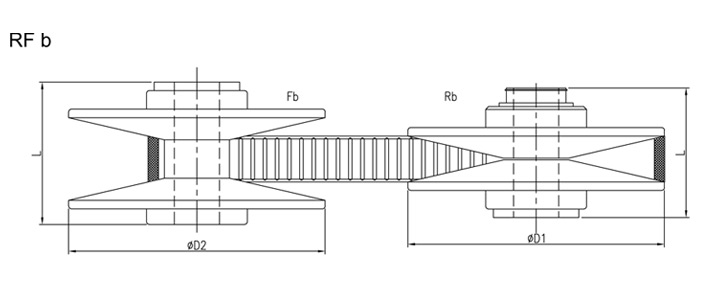

Berges Type RF b

Selection Table

Pulley Type Berges Type Deepak Size Pulley Dia Length Bore Dia Belt Size
D1/D2 L Min Max
Mechanically adjustable R 100 b

R 120 b

120 72 19 24 22 x 8
Spring Loaded F 100 b F 120 b 120 72 19 24 22 x 8
Mechanically adjustable R 130 b

R 135 b

135 72 19 24 22 x 8
Spring Loaded F 130 b F 135 b 135 72 19 24 22 x 8
Mechanically adjustable R 150 b

R 159 b

159 90 19 28 28 x 8
Spring Loaded F 150 b F 159 b 159 90 19 28 28 x 8
Mechanically adjustable R 190 b

R 190 b

190 90 19 25 28 x 8
Spring Loaded F 190 b F 190 b 190 90 19 25 28 x 8
Mechanically adjustable R 196 b

R 198 b

198 110 24 28 33 x 10
Spring Loaded F 196 b F 198 b 198 110 24 28 33 x 10
Mechanically adjustable R 210b

R 220 b

220 122 24 32 37 x 10
Spring Loaded F 210 b F 220 b 220 122 24 32 37 x 10
Mechanically adjustable R 235 b

R 236 b

236 122 28 32 37 x 10
Spring Loaded F 235 b F 236 b 236 122 28 32 37 x 10
Mechanically adjustable R 250 b

R 255 b

255 145 38 42 47 x 12
Spring Loaded F 250 b F 255 b 255 145 38 42 47 x 12
Mechanically adjustable R 280 b

R 296 b

296 162 38 42 55 x 15
Spring Loaded F 280 b F 296 b 296 162 38 42 55 x 15
Mechanically adjustable R 300 b

R 305 b

305 185 38 48 51 x 16
Spring Loaded F 300 b F 305 b 305 185 38 48 51 x 16
Mechanically adjustable R 350 b

R 346 b

346 195 42 55 70 x 18
Spring Loaded F 350 b F 346 b 346 195 42 55 70 x 18

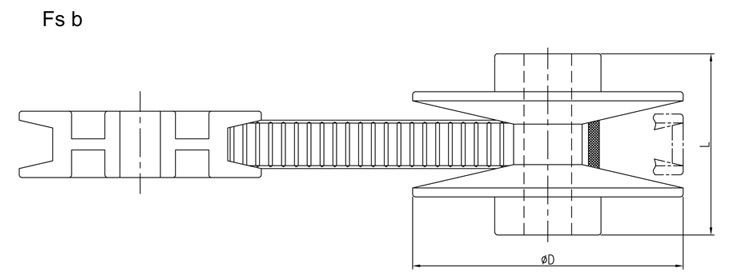

Berges Type Fsb

Selection Table

Berges Type Deepak Size Pulley Dia Length Bore Dia Belt Size
D L Min Max
F 100 sb F 120 sb 120 80 14 24 22 x 8
F 130 sb F 135 sb 135 80 19 24 22 x 8
F 150 sb F 159 sb 159 115 19 28 28 x 8
F 190 sb F 190 sb 190 115 19 28 28 x 8
F 210 sb F 220 sb 220 148 24 38 37 x 10
F 235 sb F 236 sb 236 148 24 32 37 x 10
F 250 sb F 255 sb 255 170 28 42 47 x 13
F 280 sb F 296 sb 296 190 28 42 55 x 16
F 325 sb F 346 sb 346 240 38 48 70 x 18
F 350 sb F 346 sb 346 240 42 55 72 x 22
