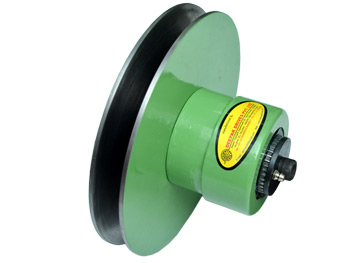

Variable Speed Pulley Drive for Tablet Compression Machine

This pulley is manufactured from graded cast-iron with serration Design. The speed variation ratio is 1 : 3. This drive is ideal For Tablet Compression Machine application and is suitable for dusty environment, compact size and economical cost. The Speed Variation is achieved by changing the centre distance between Drive R & DriveN Shafts by means of adjustable motor base.

Features :

• Serration design
• Rugged cast iron construction
• Proven reliability
• Compact design
• Finished bore With key way
• Economical cost
• Suitable for dusty environment
• Dynamically Balanced

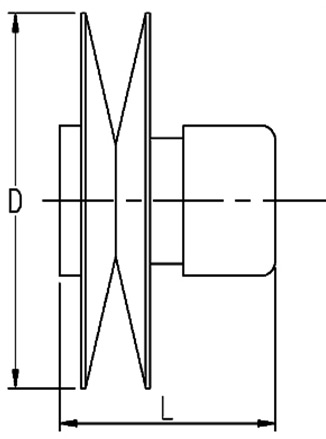

Dimension Table

Size	D	L	BORE	KEYWAY	BELT
TCM 200	190	95	28	8 X 3.3	C SECTION

Top

Specifications are subject to change without notice
