PIV Mechanical Variable speed gear box ( D- DRIVE ) Power Rating - 0.37 Kw to 15 Kw

Adjustable Center Variable Speed Pulley Drives

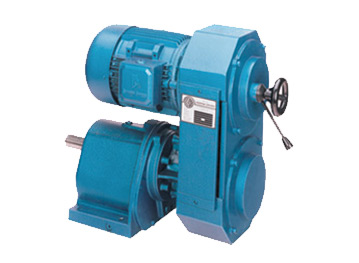

D- Drive is a variable speed geared motor, robust step less unit suitable for various industrial applications.

The unit is designed to provide low output speed at corresponding high output torque. The drive unit is manufactured from standard components and comprises of AC squirrel cage motor, variable speed drive and gearbox with case hardened profile ground helical gears. It can be easily adapted to any machine design. The unit is very compact and save time and money because they are ready to fit drive modules. The interior part of this drive is the variable speed pulley enclosed in a housing and connected to the gearbox and motor. The speed variation can be achieved by means of a hand wheel. Average life to be expected is about 10 years before major maintenance. Belt life would depend on application and environment. General experience is about 3 to 4 years life.

Features :

  • Speed variation ratio 6:1
  • Speed adjustment while the machine is in operation.
  • Life time lubricated.

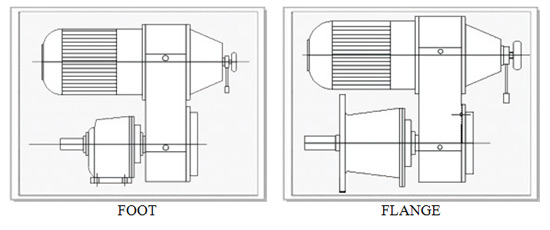

  • Foot and Flange mounting to suit any position.
  • Suitable for hazardous outdoor and dusty locations.
  • Choice of Flame proof / TEFC / Brake motors.
  • Optional remote control and speed indicator.
  • Can be coupled with clutch brake assembly.
  • Dual speed motor can be incorporated to achieve higher variation ratios

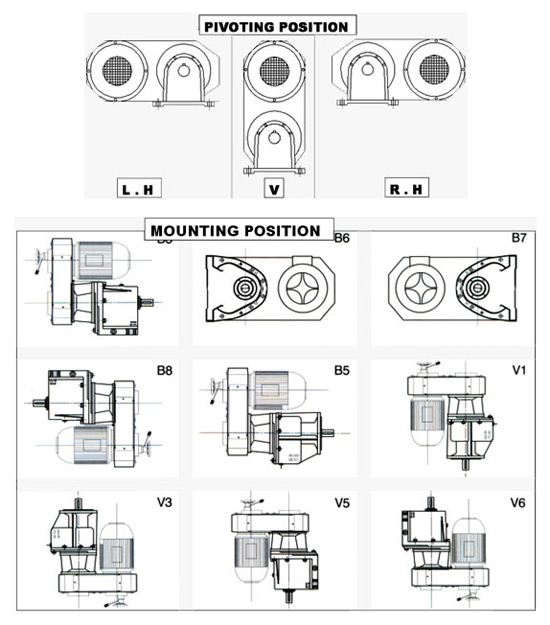

Mountings

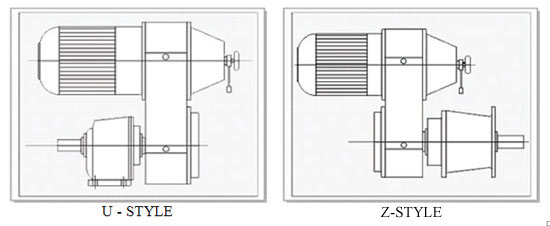

Configurations

Selection Guide Line :

  • Drive units must be selected on the necessary output speed and torque indicated in the selection table below.
  • The indicated torque is valid for a daily operating time of approx 8 hours at 100% duty time and shock free operations.
  • For other operating conditions, the service factors given in the table below must be considered.

Selection Table

SERVICE WORKING HOURS
8 24
SERVICE FACTORS
Uniform Loads 1 1.25
Moderat Shock Loads 1.25 1.5
Heavy Shock Loads 1.5 1.75
POWER 0.37 KW
Sr. No. Speed Range Torque Service Gear Box Ddrive Size
      Factor Ratio
1
2
3
4
5
594 - 112
445 - 84
286 - 55
206 - 39
118 - 22
4.3 - 17
6.7 - 14
8.35 - 22
13 - 49
20 - 49
11-2.8
7.3-3.5
5.9-2.2
3.7-1
2.45-1
5.53
7.41
11.24
15.64
27.14
27113016
27113016
27113016
27113016
27113016
6
7
8
9
118 - 22
101 - 19
86 - 16
65 - 12
20 - 63
25 - 98
32 - 98
60 - 98
4.9-1.5
3.9-1
3--1
1.5-1
28.13
31.71
37.31
49.52
27113020
27113020
27113020
27113020
10 55 - 10 72 - 98 1.3-1 58.1 271130200
11
12
13
46 - 8.9
29 - 5.6
16 - 3.2
80 - 150
100 - 196
196 - 196
2.45-1.3
1.98-1
1--1
69.6
109.1
192.1
271130250
271130250
271130250
POWER 0.75 KW
Sr. No. Speed Range Torque Service Gear Box Ddrive Size
      Factor Ratio
1
2
3
594 - 112
443 - 83
292 - 55
9.6 - 31
12.9 - 43
24 - 49
5.1 - 1.5
3.7 - 1.1
2.0 - 1
5.53
7.4
11.24
28013016
28013016
28013016
5
6
212 - 40
115 - 29
27 - 89
49 - 98
3.6 - 1.1
2 -- 1
15.48
21.19
28013020
28013020
7
8
9
10
115 - 29
127 - 24
105 - 19
81 - 15
49 - 123
45 - 149
54 - 188
70 - 196
4 - 1.5
4.3 - 1.3
3.6 - 1.0
2.8 - 1
21.16
25.75
31.27
40.29
28013025
28013025
28013025
28013025
11
12
13
14
79 - 15
60 - 11
49 - 9
39 - 7.5
72 - 238
95 - 325
116 - 343
146 - 343
4.7 - 1.4
3.6 - 1.0
2.9 - 1
2.3 - 1
41.2
54
65.8
82.2
280130300
280130300
280130300
280130300
15
16
39 - 7.5
27 - 5
146 - 477
212 - 519
3.5 - 1.0
2.4 - 1
82.2
120.9
280130350
280130350
17 17.5 - 2.86 286 - 784 2.7 - 1 202.1 280160450
POWER 1.5 KW
Sr. No. Speed Range Torque Service Gear Box Ddrive Size
      Factor Ratio
1
2
644 - 105
456 - 74
17 - 68
25 - 96
5.7 - 1.4
3.92 - 1.0
5.49
7.75
29016020
29016020
3
4
5
308 - 51
216 - 36
168 - 27
37 - 143
53 - 196
68 - 196
5.2 - 1.3
3.6 - 1
2.8 - 1
11.51
16.42
21.16
29016025
29016025
29016025
6
7
146 - 24
108 - 18
23 - 298
106 - 343
14.9 - 1.1
3.2 - 1
24.19
32.8
29016030
29016030
8
9
10
85 - 14
65 - 11
53 - 9
134 - 511
176 - 519
216 - 519
3.8 - 1.0
2.9 - 1
2.4 - 1
41.2
54
65.8
290160350
290160350
290160350
11
12
46 - 8
33 - 6
249 - 784
347 - 784
3.1 - 1
2.2 - 1
76.8
105.5
290160450
290160450
13
14
32 - 6
18 - 3
358 - 1193
636 - 1323
3.6 - 1.1
2.0 - 1
108.6
190.3
290160550
290160550
POWER 2.2 KW
Sr. No. Speed Range Torque Service Gear Box Ddrive Size
      Factor Ratio
1
2
3
697 - 112
444 - 71
304 - 49
24 - 93
37 - 147
55 - 196
8.1 - 2.1
5.2 - 1.3
3.5 - 1
5.02
7.88
11.51
110020525
110020525
110020525
4
5
6
306 - 49
227 - 37
182 - 30
54 - 214
74 - 283
93 - 343
6.3 - 1.6
4.6 - 1.2
3.6 - 1
11.43
15.37
19.21
110020530
110020530
110020530
7
8
144 - 24
106 - 18
116 - 437
158 - 519
4.4 - 1.1
3.2 - 1
24.19
32.8
110020535
110020535
9
10
102 - 17
70 - 12
165 - 617
240 - 784
4.7 - 1.2
3.2 - 1
34.4
50.5
1100205450
1100205450
11
12
13
14
63 - 11
57 - 10
45 - 8
32 - 6
266 - 955
294 - 1050
373 - 1313
525 - 1323
4.9 - 1.3
4.5 - 1.26
3.5 - 1.0
2.52 - 1
54.9
61.2
77.5
108.6
1100205550
1100205550
1100205550
1100205550
15
16
32 - 5
18 - 3
525 - 2100
933 - 2254
4.2 - 1.0
2.4 - 1
108.2
187.5
1100252600
1100252600
POWER 3.7 KW
Sr. No. Speed Range Torque Service Gear Box Ddrive Size
      Factor Ratio
1
2
3
4
684 - 110
466 - 75
343 - 55
227 - 36
41 - 160
60 - 235
82 - 321
124 - 343
8.3 - 2.1
5.7 - 1.4
4.1 - 1.0
2.7 - 1
5.11
7.51
10.18
15.37
111220530
111220530
111220530
111220530
5
6
227 - 36
182 - 29
124 - 490
155 - 519
4.1 - 1.0
3.3 - 1
15.37
19.21
111220535
111220535
7 142 - 23 199 - 768 3.9 - 1.0 24.55 111220545
8 112 - 18 252 - 784 3.1 - 1 31.1 1112205450
9
10
11
105 - 17
83 - 14
63 - 11
269 - 1039
340 - 1260
448 - 1323
4.9 - 1.2
3.8 - 1.05
2.9 - 1
33.2
42.1
54.9
1112205550
1112205550
1112205550
12
13
14
15
56 - 9
45 - 8
32 - 6
18 - 3
504 - 1963
628 - 2208
883 - 2254
1570 - 2254
4.4 - 1.1
3.5 - 1.0
2.5 - 1
1.4 - 1
61.5
76.4
108.2
187.5
1112252600
1112252600
1112252600
1112252600
16 20 - 4 1413 - 4116 2.9 - 1 172.3 1112315800
POWER 5.5 KW
Sr. No. Speed Range Torque Service Gear Box Ddrive Size
      Factor Ratio
1 684 - 111 61 - 236 5.6 - 1.4 5.11 113225230
2
3
343 - 56
227 - 37
122 - 468
185 - 519
4.2 - 1.1
2.8 - 1
10.18
15.37
113225235
113225235
4
5
221 - 36
175 - 28
190 - 729
240 - 784
4.1 - 1.0
3.2 - 1
15.83
19.99
113225245
113225245
6
7
171 - 28
135 - 22
246 - 937
311 - 1193
5.3 - 1.4
4.2 - 1.1
20.4
25.84
113225255
113225255
8 105 - 17 400 - 1323 3.3 - 1 33.2 1132252550
9
10
11
12
13
14
94 - 15
84 - 13
62 - 10
45 - 7
32 - 5
18 - 3
447 - 1750
500 - 2020
677 - 2254
933 - 2254
1313 - 2254
2334 - 2254
5.0 - 1.2
4.5 - 1.1
3.3 - 1
2.4 - 1
1.7 - 1
0.9 - 1
37.1
41.5
55.6
76.4
108.2
187.5
1132252600
1132252600
1132252600
1132252600
1132252600
1132252600
15 20 - 3 2101 - 4116 1.9 - 1 172.3 1132315800
POWER 7.5 KW
Sr. No. Speed Range Torque Service Gear Box Ddrive Size
      Factor Ratio
1 684 - 111 83 - 322 4.1 - 1.0 5.11 213225230
2
3
466 - 75
343 - 55
122 - 477
167 - 519
4.2 - 1.0
3.1 - 1
7.51
10.18
213225235
213225235
4
5
313 - 50
221 - 36
183 - 716
259 - 784
4.2 - 1.0
3.0 - 1
11.18
15.83
213225245
213225245
6
7
8
219 - 35
171 - 27
135 - 22
261 - 1025
335 - 1323
424 - 1323
5.0 - 1.2
3.9 - 1
3.1 - 1
15.96
20.4
25.84
213225255
213225255
213225255
9
10
11
12
13
115 - 18
84 - 13
62 - 10
45 - 7
18 - 3
498 - 1989
682 - 2254
924 - 2254
1273 - 2254
2254 - 2254
4.5 - 1.1
3.3 - 1
2.4 - 1
1.7 - 1
1 -- 1
30.2
41.5
55.6
76.4
187.5
2132252600
2132252600
2132252600
2132252600
2132252600
14 20 - 3 2865 - 4116 1.4 - 1 172.3 2132315800
POWER 11 KW
Sr. No. Speed Range Torque Service Gear Box Ddrive Size
      Factor Ratio
1
2
3
644 - 104
429 - 70
245 - 40
130 - 505
195 - 750
343 - 784
6.0 - 1.5
4.0 - 1.0
2.2 - 1
5.43
8.14
14.25
116031545
116031545
116031545
4
5
247 - 40
171 - 27
340 - 1313
491 - 1323
3.8 - 1.0
2.6 - 1
14.13
20.4
116031555
116031555
6
7
170 - 27
137 - 22
494 - 1945
613 - 2254
4.5 - 1.1
3.6 - 1
20.5
25.47
116031560
116031560
8
9
10
11
104 - 17
62 - 10
45 - 7
32 - 5
808 - 2254
1355 - 2254
1867 - 2254
2254 - 2254
2.7 - 1
1.6 - 1
1.2 - 1
1 -- 1
33.4
55.6
76.4
108.2
1160315600
1160315600
1160315600
1160315600
12
13
32 - 5
20 - 3
2626 - 4116
4116 - 4116
1.5 - 1
1 -- 1
106.5
172.3
1160315800
1160315800
POWER 15 KW
Sr. No. Speed Range Torque Service Gear Box Ddrive Size
      Factor Ratio
1
2
644 - 104
429 - 70
177 - 688
267 - 784
4.4 - 1.1
2.9 - 1
5.43
8.14
316031545
316031545
3
4
5
429 - 70
245 - 40
171 - 27
267 - 1023
467 - 1323
670 - 1323
4.9 - 1.2
2.8 - 1
1.9 - 1
8.14
14.25
20.4
316031555
316031555
316031555
6 170 - 27 674 - 2254 3.3 - 1 20.5 316031560
7
9
104 - 17
51 - 8
1101 - 2254
2247 - 2254
2.0 - 1
1.0 - 1
33.4
68.3
3160315600
3160315600
8
10
11
12
101 - 16
51 - 8
32 - 5
20 - 3
1134 - 4116
2247 - 4116
3581 - 4116
4116 - 4116
3.6 - 1
1.8 - 1
1.1 - 1
1 -- 1
34.5
68.8
106.5
172.3
3160315800
3160315800
3160315800
3160315800

Please Contact For Dimensions
