Variable Speed Pulley for MBO & Stahl Folding Machines

Product Interchange To Lenze Variable Speed Pulley

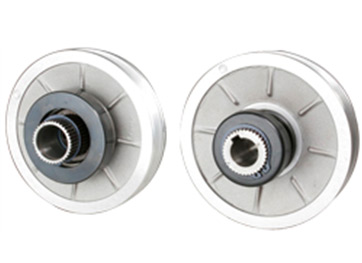

This Variable Speed Pulley drives consist of pair of pulley and belt

  • driveR Pulley with bearing assembly
  • driveN pulley with helical coil spring

This drive is an interchange to the original drive. These pulleys are manufactured from steel and can be installed without any modifications on machine. These pulleys has unique serration design for torque transmission with finish bore and keyway and are ready to fit module.

Selection Table

Pulley Type Interchange Size Pulley Dia Length Bore Dia Belt Sizw
Min Max
Mechanically adjustable  R 100 b 120 72 19 24 22 x 8
Spring Loaded F 100 b 120 72 19 24 22 x 8
Mechanically Adjustable R 130 b 135 72 19 24 22 x 8
Spring Loaded F 130 b 135 72 19 24 22 x 8
Mechanically Adjustable R 150 b 159 90 19 28 28 x 8
Spring Loaded F 150 b 159 90 19 28 28 x 8
