Variable Speed Pulley drives for GTO / MO Printing machines

Product Interchange To Lenze Variable Speed Pulley

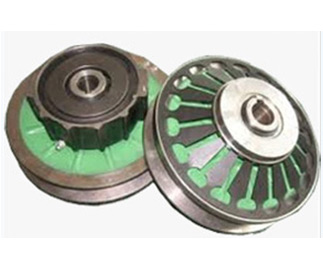

This Variable Speed Pulley drives consist of pair of pulley and belt

  • driveR Pulley with bearing assembly
  • driveN pulley with diaphragm spring

This drive is an interchange to the original drive. These pulleys are manufactured from steel and can be installed without any modifications on machine. These pulleys has unique serration design for torque transmission with finish bore and keyway and are ready to fit module.

Selection Table

Pulley Type Size to Interchange Pulley Dia Length Bore Dia Keyway Belt Size
Mechanically adjustable 11.112.18.910 185 110 24 8 x 3.3 28 x 8
Spring Loaded 11.112.18.920 185 110 24 8 x 3.3 28 x 8
